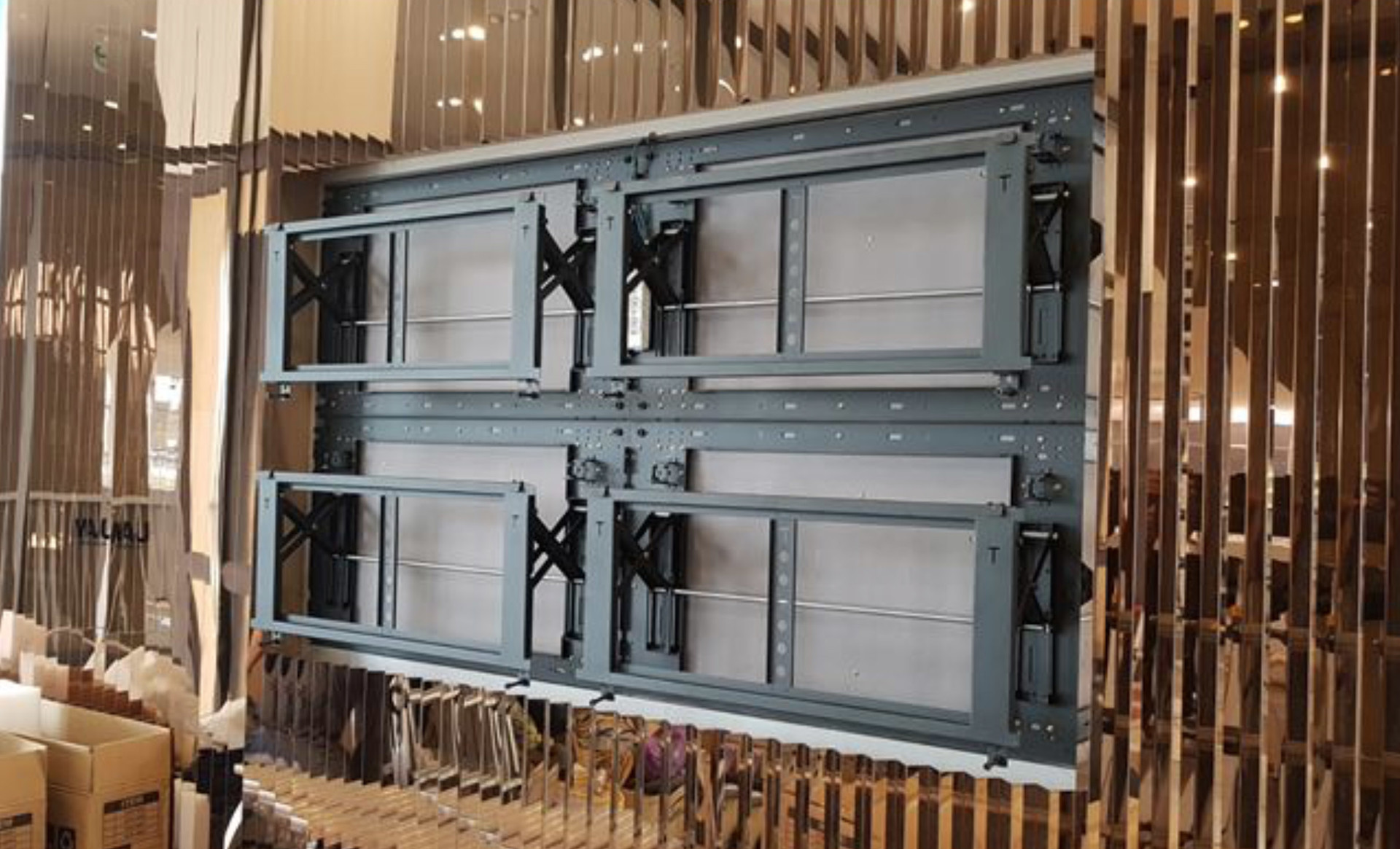

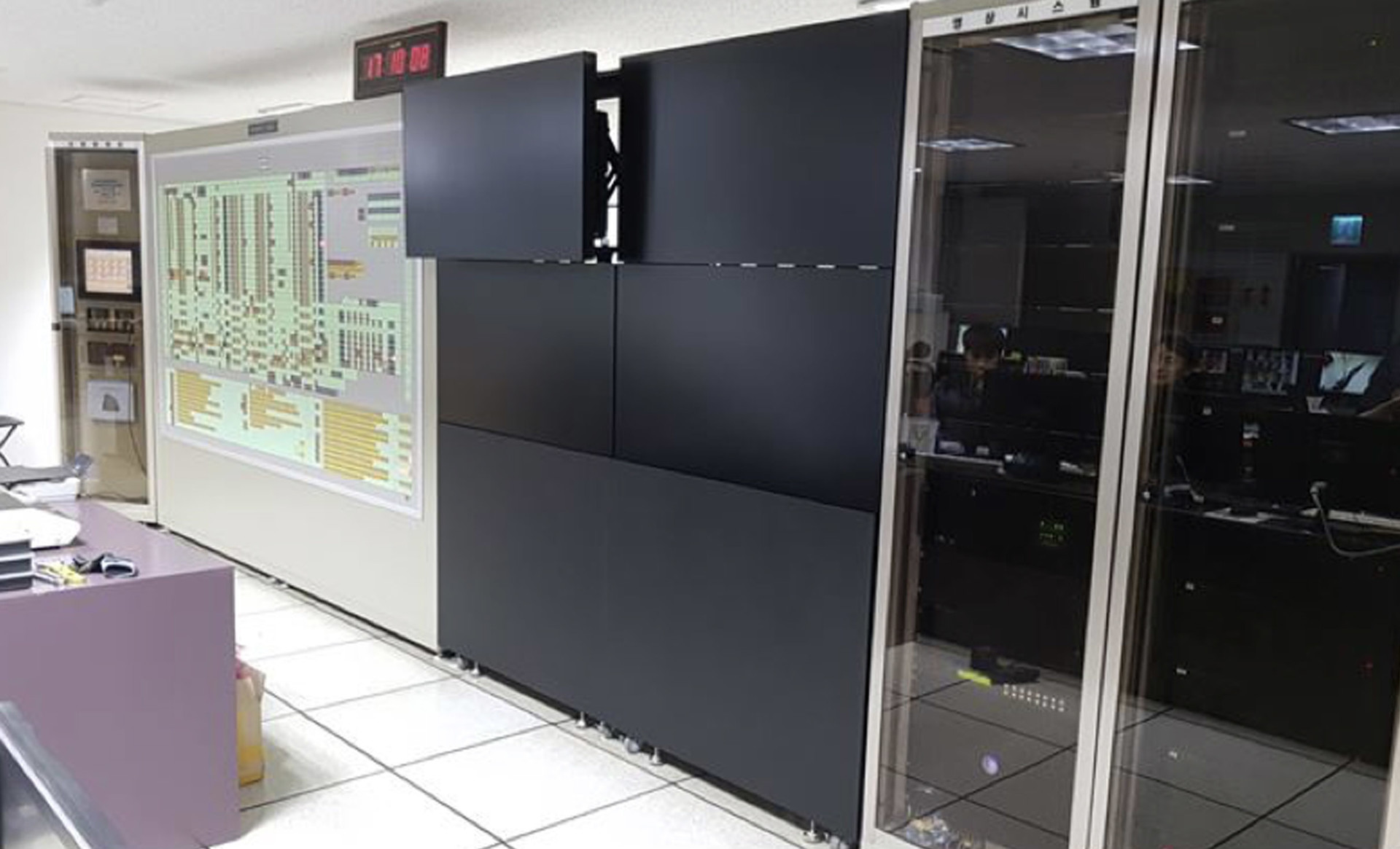

We deliver UNB/ENB seamless, high-impact video walls for public, retail, and transportation settings, With Full HD and 4K Ultra HD resolutions, high brightness, these displays provide sharp, vivid images with perfect performance.

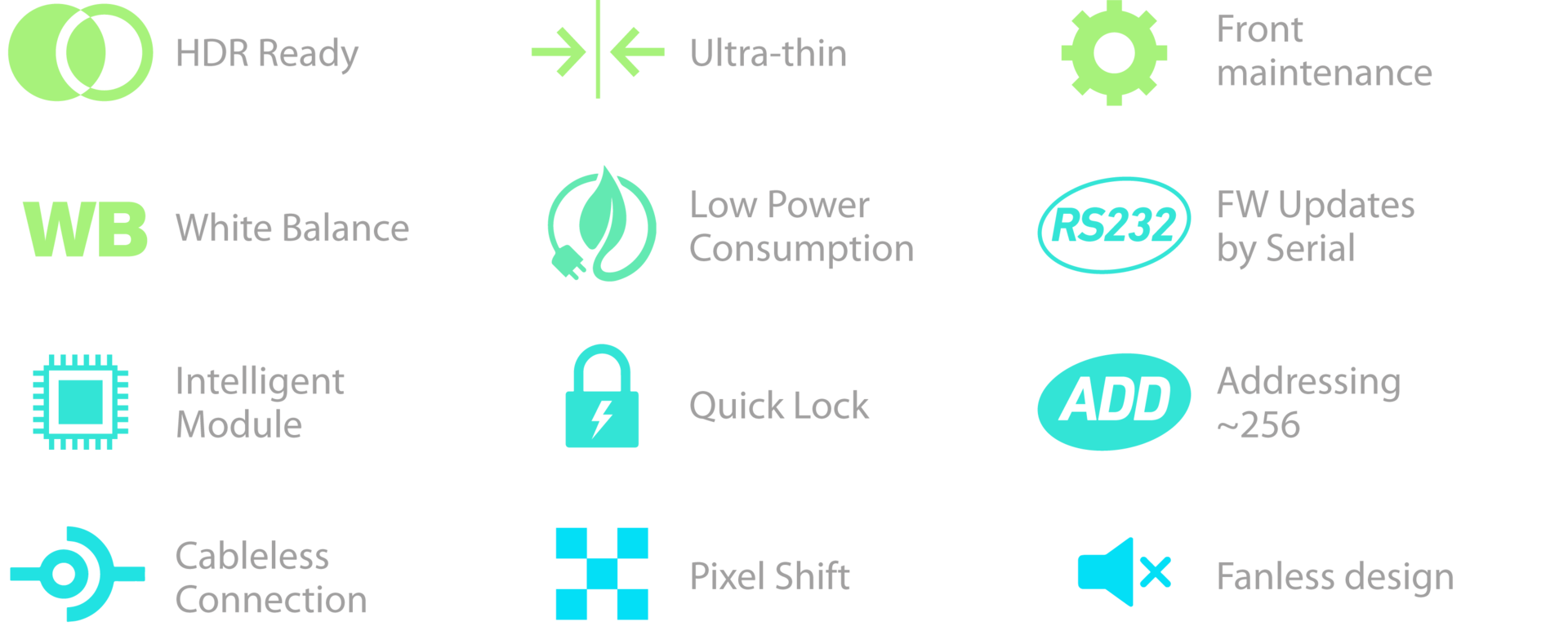

KEY FEATURES

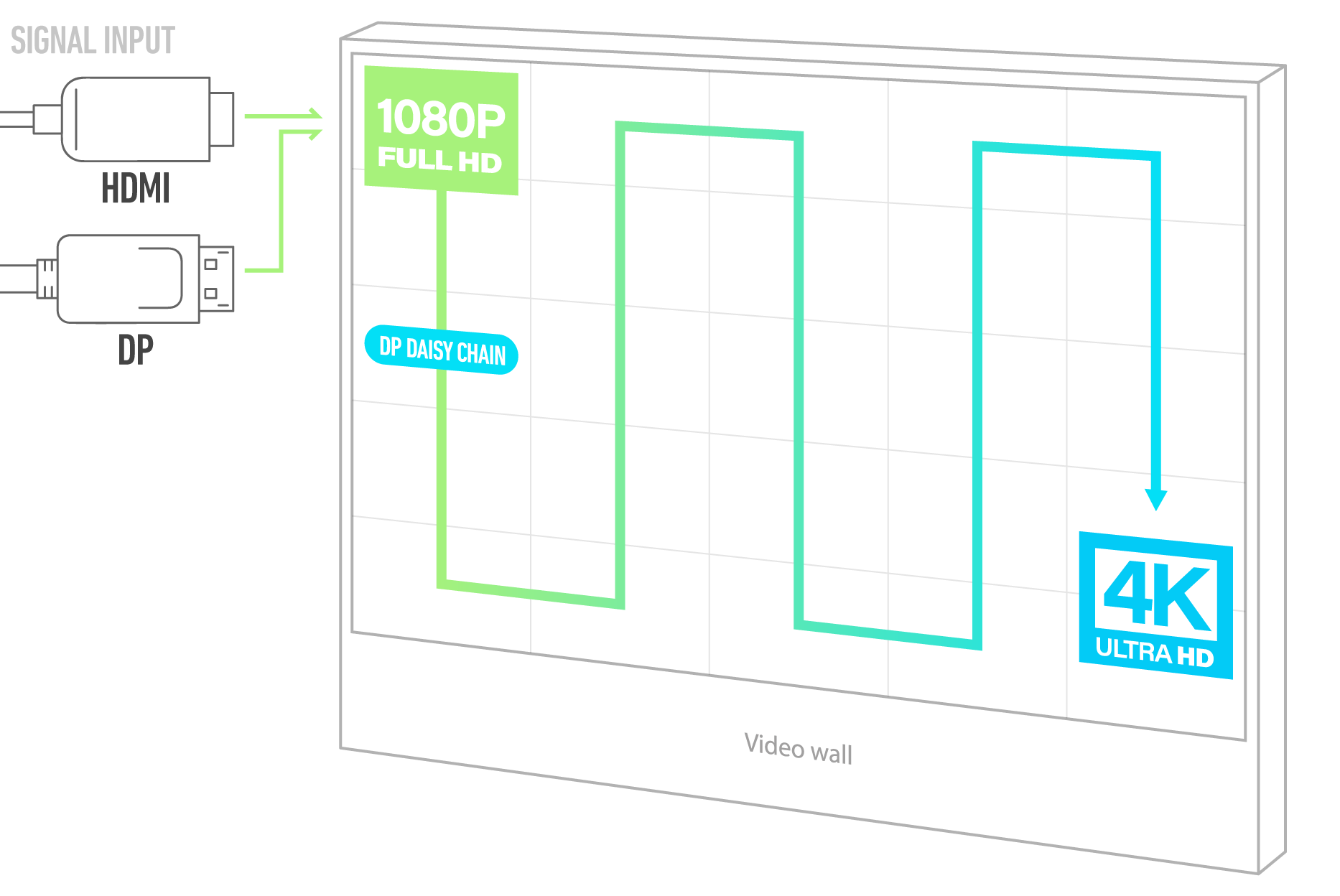

CONFIGURATION
PROODUCT :

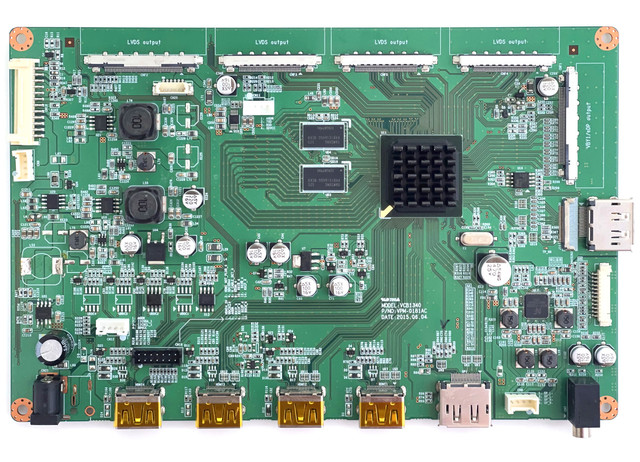

VCB1340
Model No.VCB1340M
Main ChipsetREALTEK RTD2796
Input/Output
Resolution		Up to UHD(3840x2160, 4096x2160)
Panel InterfaceLVDS(up to 8ch) / V-by-one / e-DP(1.1)
120Hz Panel support by FRC Board - Option Available
Input InterfaceHDMI_1.4 3Port, HDMI_2.0(4K2K 60Hz) 1Port,
DP(4K2K 60Hz) 1Port, AUDIO-In
Output InterfaceDP (Daisy Chain - Throw DP SST)
RS232 In/Out Interface
Power Output		RS232 In/Out(9P Jack), IR In(2.5 Phone Jack), LEDV Power Output(USB Jack)
-Support by Daughter Board (NSB232VU)
Speak Out20Wx2ch(8ohm)-24V or 8Wx2ch(8ohm)-12V/SMPS
Panel Power5V / 10V / 12V
Power Input12V/24V DC, External SMPS available
CompatibilityVESA Standard, Mac
User Control(OSD)OSD Menu, 2 Languages, AUTO adjust-configure, 7Keys, 2LED Indicater
Dimension(W x L x H)Controller Board : 200 x 130 x 16mm
OSD Board(VOB1079D) : 150 x 16 x 8.7mm
Daughter Board (NSB232VU) : 100 x 30 x 14mm
Plug & PlayDDC 2B, VESA DPMS
Special FeaturesAll input supporting PIP/4P(4Windows)/PBP(L/R,Top/Bottom)
Supported only RS232 Commend without additional PC program
Display Split(HxV): Max 10x10
-> Supporting Up to 400 display through 4Windows per 1Panel
Daisy chain Output
Remote Control
ApplicationsMulti-vision (Video Wall) / Control system
PROODUCT :

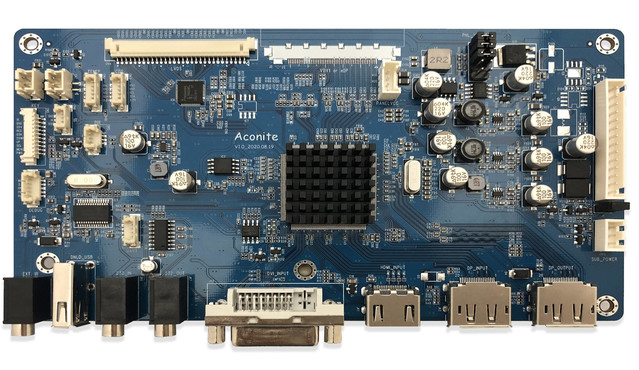

ACONITE
Aconite Board
ItemDescriptionRemarks
Video InputDP 1.2 : 1EAUp to 3840x2160@60Hz
HDMI 2.0 : 2EAUp to 3840x2160@60Hz
Video OutputDP : 1EADaisy chain output
Sensor InterfaceCDS Sensor : 1EAOptional Function
Temperature Sensor : 1EAOptional Function
Motion Sensor : 1EAOptional Function
FAN Control : 2EAOptional Function (12V DC FAN)
LCD Panel InterfaceVby1 : 1EAUp to 3840x2160@60Hz, Option
eDP : 1EAUp to 3840x2160@60Hz, Option
LVDS : 1EAUp to 1920x1080@60Hz, Option
Power InputSMPS Interface : 1EAStandby 5V, 5V, 12V
User interface ControlOSD Board : 5 Key-
IR Receiver1Wafer Option
IR Receiver2Phone Jack
RS232C Input : 1EAPhone Jack
RS232C Output : 1EAPhone Jack
UART (TTL) : 1EAWafer, Option
MaintenanceUSB : 1EAFW Upgrade
Size175 x 95 mm-
Special Feature (Option)
Communication through DP PortUI Communication by daisy chain DP Input/Output Port
Auto Brightness controlThis function is worked with an external illumination sensor.
Auto FAN controlThis function is worked with an external temperature sensor.
Video Wall FunctionThis function is FW option.
